Brush Strip Sealing Systems

Brush strip sealing systems close holes within the raised floors of data centres or offices to prevent cold air escaping and mixing with hot air.

Brush strips sealing syetms are designed for many applications within the data center, typically used to close any holes within the raised floor to prevent cold air escaping and mixing with the hot air. They are available up to 3 metre in lengths.

The standard range of Brush strip consists of six brush section sizes with over forty trim lengths from 8mm to 300mm, all available with or without aluminium fixing carrier. All standard sections are filled with Type 6 black nylon, a hard wearing material with excellent recovery properties well able to cope with temperature variations from -40C up to 100C.

Each corresponding aluminium fixing carrier is available with the fixing flange set at 180, 90 or 45 degrees. All brushstrip and aluminium sections are stocked in 2.0 meter, 2.5 meter and 3.0 meter lengths. Non standard lengths are also available.

Standard Materials

  • Filaments: extruded from type 6 nylon (hard wearing, good memory)
  • Working temperature range: 40ºC to +100ºC
  • Metal backing: electro galvanised steel
  • Core wire: electro galvanised steel

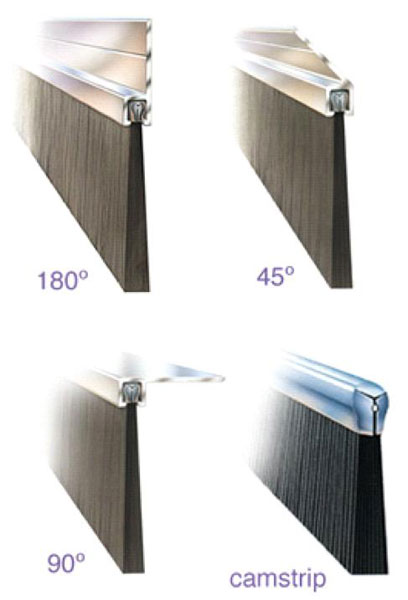

  • Fixing carrier: mill finish extruded aluminium in 180º, 90º and 45º flanges

Click the image to enlarge:
