Plenaform Baffle System

The Plenaform Baffle is a flexible, snap together, air flow baffle system which helps solve thermal imbalances in data centres.

Solutions do not have to be expensive or complex to reap large savings in energy costs and hardware life.

The Plenaform Baffle System is a flexible, snap together, air flow baffle system which helps to solve dynamic thermal imbalances in data centers.

Plenaform baffles are scored both vertically and horizontally so sections can be removed or added onto to meet any height or width requirement. All angles of bend radius may be attained, including inside and outside mounting to raised floor pedestals.

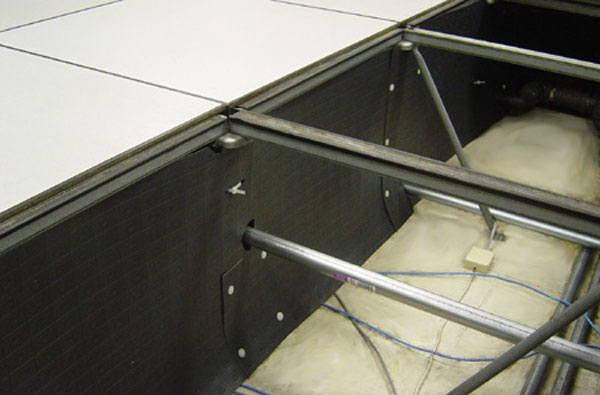

Continuous punch out hole pattern allows attachment to any style raised floor pedestal at any height or width location with cable ties.

Plenaform baffles are die cut from a flame retardant polypropylene compound that is inert,  non-conductive, and non-hygroscopic with a UL-VO 94 rating.

Product Benefits

  • Control and Balance Data Center Airflow
  • Separate Hot Aisles from Cold Aisles
  • No Installation Tools Required
  • On-Site Configurable (Width and Height)
  • Fits ANY Raised Floor Pedestal
  • Reduces Energy Consumption and Operating Costs
  • An Inert, Non-Conductive,Non-Hygroscopic Material
  • Flammability rating of UL V- 0 per UL94
  • RoHS and WEEE Compliant
  • All Energy Saving and Thermal Tuning Tool
  • Seal off under PDU's
  • Stop air loss under server racks
  • Create dedicated return air paths above ceilings
  • Create CRAC extension intake heads
  • Install inside servers racks to stop lateral heat transfer
  • Easy to Install - Right Out of the Box!
  • Panel size approx 1220mm x 610mm

Click the image to enlarge:

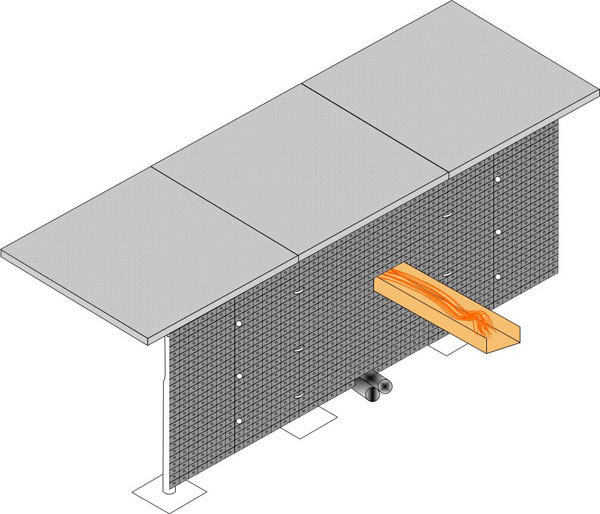

Plenaform Baffle System Plenaform Baffle System diagram back to products
